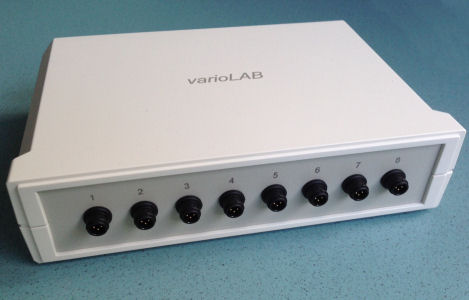

varioLAB
Stationary Data Acquisition System for Physiological Data
As stationary amplifier the Variolab meets all requirements for the measurement of different electrical biodata. GSR, ECG, pulse. Respiration and EEG up to 16 channels at the same time can also be measured in combination. The Variolab is particularly suitable in combination with the remote eye tracker products from Tobii.
TECHNICAL DATA
- Dimensions : 20,5 x 14,5 x 6 cm
- Weight : 380 grams (including memorycard and batteries)
- Data Collection :
- Eight Analog Measurement Channels
- Marker/Trigger Channel
- Digitalization :
- A/D Converter (Eight Channels)
- Resolution: 16-bit
- Selectable Data Acquisition Rate
- Power Supply :
- 5 volts from USB interface
- Power consumption approximately 10 mA plus the consumption of connected devices
- Preamplifiers and sensors (approximately 1 mA per channel)
- Interfaces : USB interface (230 KB) for PC connection
- Display elements :
- LED on the back of the device
(steady light when ready, blinking during measurement)
- Speaker inside the device
(outputs tones for operational status)
- LED on the back of the device
Further technical Information - PDF

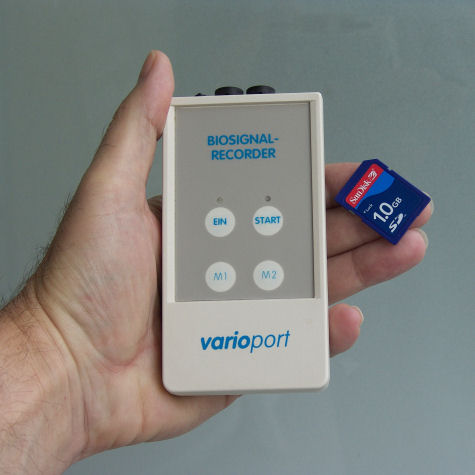

Varioport
varioport
As mobile device for recording bioelectric signals the Varioport has long been used in various research institutions. In combination with the Tobii Glasses 2 it forms a comprehensive solution to collect data outside the laboratory environment.
TECHNICAL DATA
- Dimensions : 12 x 6,5 x x2,2 cm
- Weight : 170 grams (including memorycard and batteries)
- Channels :
- 16 analog inputs (optional 24)
- 2 digital marker inputs
- Serial marker/trigger input (256 codes)
- 2 channels for battery voltage + power consumption
- A/D-conversion :
- Resolution 16 bits (65536 steps)
- Sample rate individually selectable per channel
- Memory media : SD-Card (up to 4 GB)
- Power Supply :
- Two AA-cells
- Power consumption from 1 mA (sleep mode)
- to 30 mA (full speed at all channels)
- Operating time : up to 4 days (depending on number of channels recorded and processor duty)
- Connections :
- Three connectors for analog and marker inputs
- Serial port to PC (up to 230 KBaud)
- Bluetooth module (optional)
- WLAN module (in preparation)
PRE AMPLIFIERS
- PRE AMPLIFIERS
- ECG (Electro-Cardiogram)
- EEG (Electro-Encephalogram)
- EMG (Electro-Myogram), also Facial EMG
- EOG (Eye movements)
- EDA / GSR (Skin response)
Further technical Information- PDF

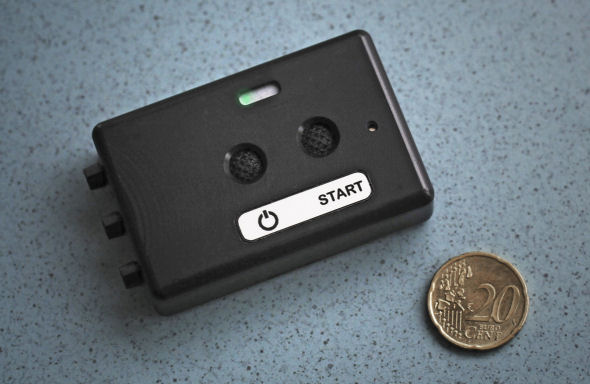

varioport-e
Recorder für Physiologie- und Umweltdaten
varioport_e
The newest and smallest product of the Varioport-family, but indeed comparable to its bigger brothers in performance and quality. With its dimensions of 65mm x 43mm and a weight of only 50g it is particularly well suited for use in environments where it comes to authenticity and where extensive technical equipment would constitute a disturbance of the experiment, for example in supermarkets or at fairs and exhibitions. Also the field of study of sports activities this unit is an ideal choice.
Especially in combination with the Tobii Glasses 2 this solution guarantees optimal authentic implementation, since the measuring devices do not disturb the subjects after a short time of getting used to them.
TECHNICAL DATA
- Dimensions : 65 x 43 x 17 mm
- Weight : 50 Gramm (including memorycard and batteries)
- Channels :
- 8 analog inputs
- Digital marker input
- Channel for battery voltage + power consumption
- Built-in Pre-Amplifiers for ECG and EDA
- Built-in 3D-Sensor for position and movement measurement
- A/D-conversion :
- Resolution: 16 bits (65536 steps)
- Sample rate individually selectable per channel
- Memory media : Micro-SD-Card (up to 4 GB)
- Power Supply :
- Built-in lithium polymer battery
- Power consumption from 60µA (standby)
to 1550µA (full measurement)
- Operating time :
- up to 14 days for standard measurements
- up to 50 days (only temperature and humidity)
- Connections :
- Serial interface (start/stop/online)
- USB (battery charging/ data reading)
- Two freely assignable input sockets for measuring cables and sensors
